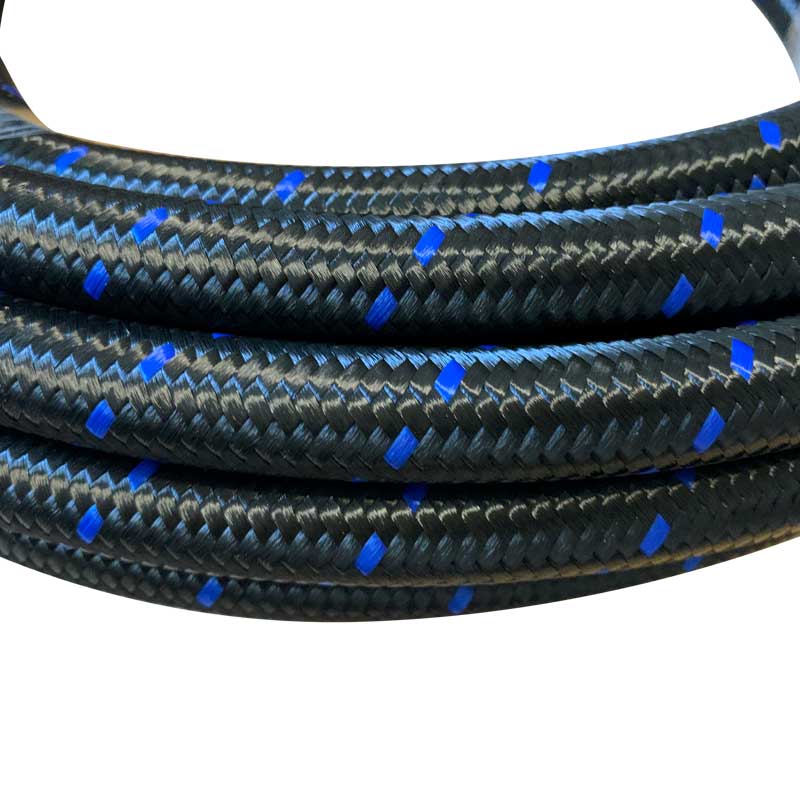

黑色尼龙编织带蓝线油管AN4-AN20
产品名称：黑色带蓝线尼编织油管
产品规格：AN4,AN6,AN8,AN10,AN12,AN16,AN20
产品材质：内层CPE橡胶+不锈钢编织+尼龙编织网
适用范围：汽车改装机油管，汽油管，真空管及水管的连接
产品规格：AN4,AN6,AN8,AN10,AN12,AN16,AN20
产品材质：内层CPE橡胶+不锈钢编织+尼龙编织网
适用范围：汽车改装机油管，汽油管，真空管及水管的连接
GB0723 series hose is for performance and racing enthusiasts who want high quality light weight hose that is easier to assemble than traditional braided steel hose.
Constructed with a braided nylon outer shield for abasion resistance.
A Flexible stainless steel inner core for superior strength embedded in the Chlorinated Polyethylene(CPE) synthetic rubber liner.
For use with fuel systems,methanol, oil, lubricants,E85,E10,coolant systems and vacuum applications.
Minimum temperture -40℃，Maximum the temperature 150℃.
NYLON STAINLESS STEEL BRAIDED HOSE
| Part No. | AN Size | Part No. | AN Size |
| GB0723-04 | 04 | GB0723-09 | 09 |
| GB0723-05 | 05 | GB0723-10 | 10 |
| GB0723-06 | 06 | GB0723-12 | 12 |
| GB0723-07 | 07 | GB0723-16 | 16 |
| GB0723-08 | 08 | GB0723-20 | 20 |
| AN | I.D. | O.D. | 工作压力 | 爆破压力 | ||
| -4 | 7/32'' | 5.6mm | 7/16'' | 11.2mm | 500PSI | 2000PSI |
| -5 | 1/4'' | 6.4mm | 1/2'' | 12.7mm | 500PSI | 2000PSI |
| -6 | 11/32'' | 8.7mm | 9/16'' | 14.2mm | 500PSI | 2000PSI |
| -7 | 3/8'' | 9.6mm | 5/8'' | 15.7mm | 500PSI | 2000PSI |
| -8 | 7/16'' | 11.1mm | 11/16'' | 17.1mm | 500PSI | 2000PSI |
| -9 | 1/2'' | 12.7mm | 23/32'' | 18.3mm | 500PSI | 2000PSI |
| -10 | 9/16'' | 14.2mm | 53/64'' | 20.8mm | 500PSI | 2000PSI |
| -12 | 11/16'' | 17.4mm | 31/32'' | 24.4mm | 350PSI | 1400PSI |
| -16 | 7/8'' | 22.2mm | 1-13/64'' | 30.5mm | 350PSI | 1400PSI |
| -20 | 1-1/8'' | 28.5mm | 1-13/32'' | 35.81mm | 350PSI | 1400PSI |
