双层不锈钢编织油管/机油管/汽油管AN4-AN20
产品名称：双层不锈钢编织油管
产品规格：AN4,AN6,AN8,AN10,AN12,AN16,AN20
产品材质：内层CPE橡胶+外2层不锈钢编织
适用范围：汽车改装机油管，汽油管，真空管及水管的连接
产品规格：AN4,AN6,AN8,AN10,AN12,AN16,AN20
产品材质：内层CPE橡胶+外2层不锈钢编织
适用范围：汽车改装机油管，汽油管，真空管及水管的连接
//Hose

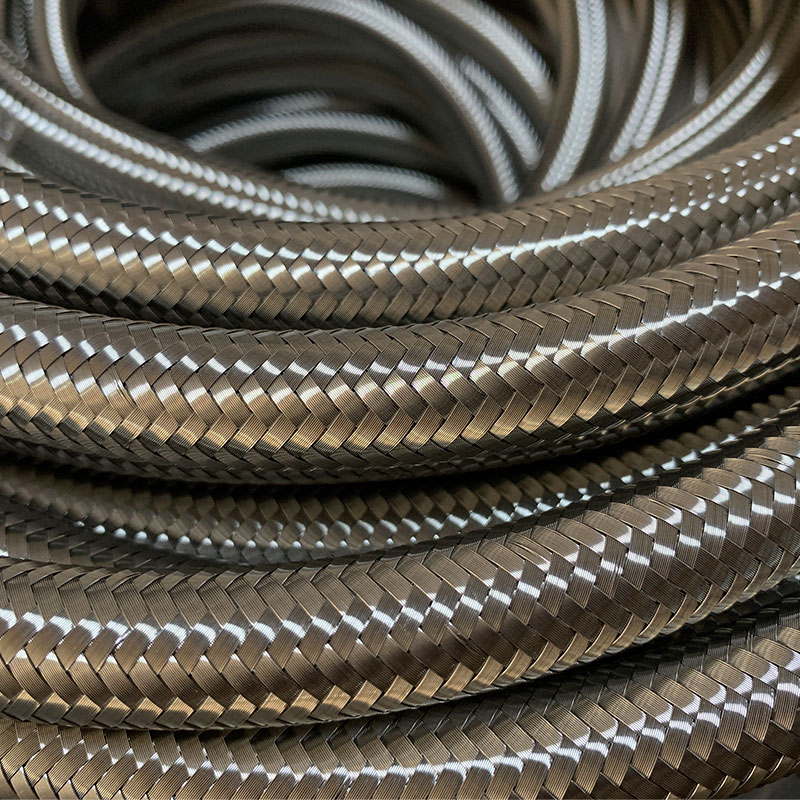

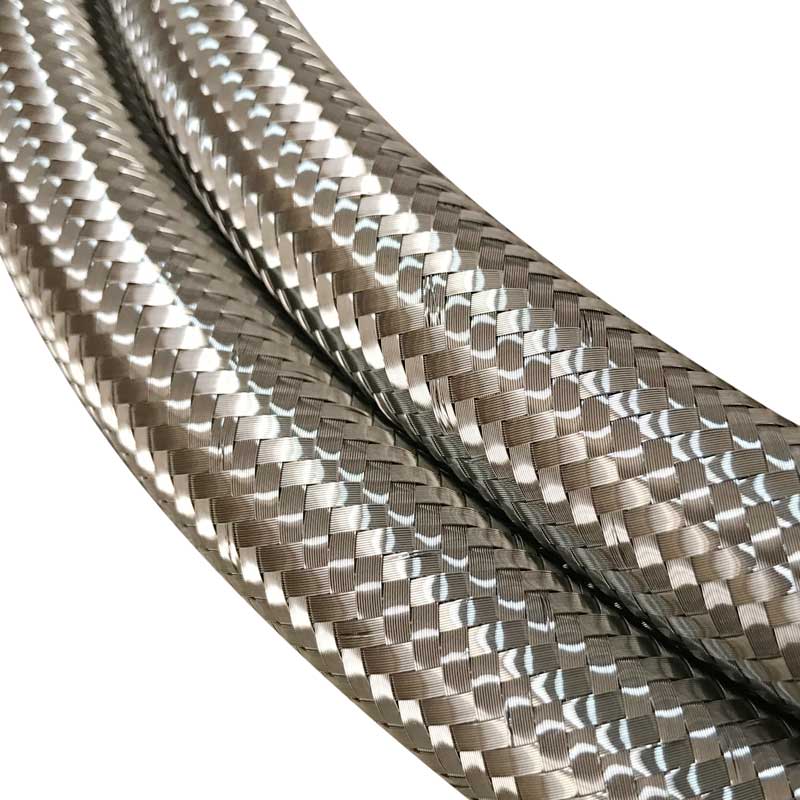

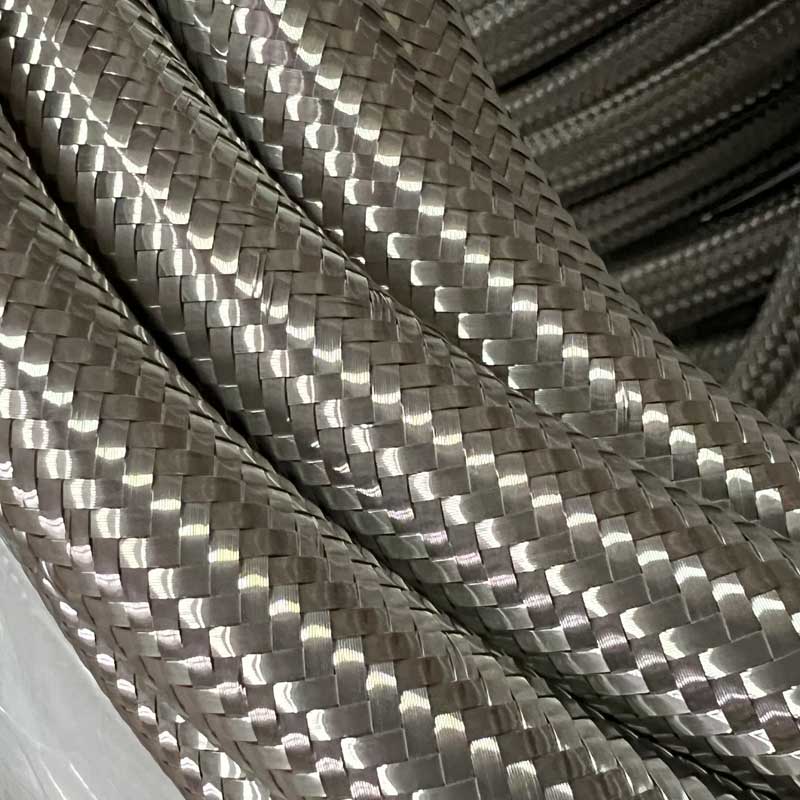

GB0721 series hose is a true double braided stainless hose that uses the highest quality stainless aire available in the world.
Constructed with a stainless steel outer braid that resists abrasion and corrosion.

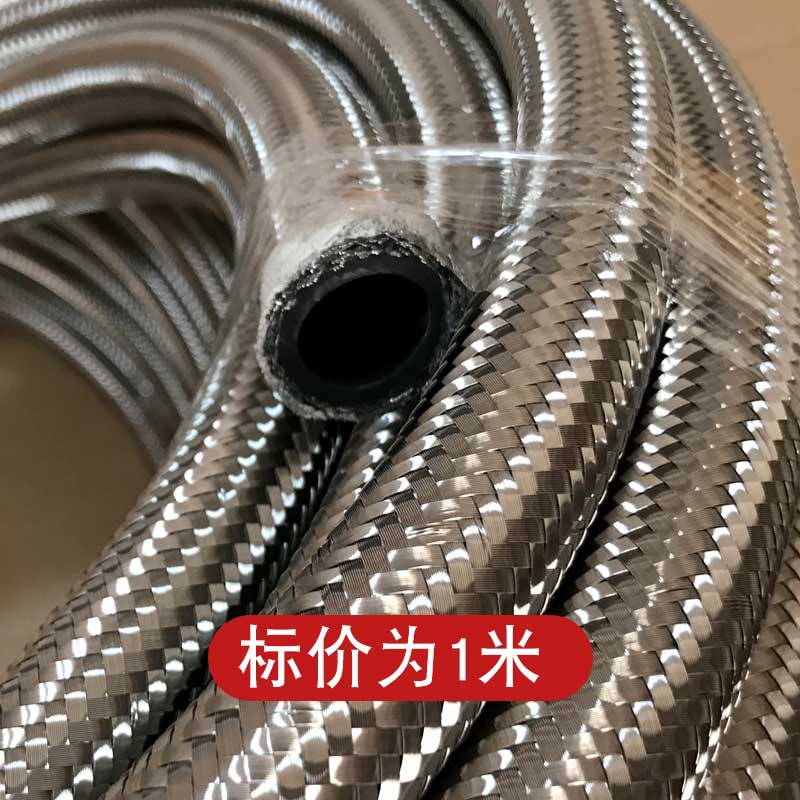

Combined with a reinforced Chorinated Polyethylene(CPE) synthetic rubber liner with a nylon inner braid.
For use with fuel systems,methanol,oil,lubricants,coolant systems and vacuum applications.
Minimum temperture -40℃，Maximum the temperature 150℃
STAINLESS STEEL BRAIDED HOSE
| Part No. | AN Size | Part No. | AN Size |
| GB0721-04 | 04 | GB0721-09 | 09 |
| GB0721-05 | 05 | GB0721-10 | 10 |
| GB0721-06 | 06 | GB0721-12 | 12 |
| GB0721-07 | 07 | GB0721-16 | 16 |
| GB0721-08 | 08 | GB0721-20 | 20 |
双层不锈钢编织油管的参数表
| AN | I.D. | O.D. | 工作压力 | 爆破压力 | ||
| -4 | 7/32'' | 5.6mm | 7/16'' | 11.2mm | 1000PSI | 6000PSI |
| -5 | 1/4'' | 6.4mm | 1/2'' | 12.7mm | 1000PSI | 6000PSI |
| -6 | 11/32'' | 8.7mm | 9/16'' | 14.2mm | 1000PSI | 6000PSI |
| -7 | 3/8'' | 9.6mm | 5/8'' | 15.7mm | 1000PSI | 6000PSI |
| -8 | 7/16'' | 11.1mm | 11/16'' | 17.1mm | 1000PSI | 5000PSI |
| -9 | 1/2'' | 12.7mm | 23/32'' | 18.3mm | 1000PSI | 5000PSI |
| -10 | 9/16'' | 14.2mm | 53/64'' | 20.8mm | 1000PSI | 5000PSI |
| -12 | 11/16'' | 17.4mm | 31/32'' | 24.4mm | 1000PSI | 3750PSI |
| -16 | 7/8'' | 22.2mm | 1-13/64'' | 30.5mm | 750PSI | 2500PSI |
| -20 | 1-1/8'' | 28.5mm | 1-13/32'' | 35.81mm | 500PSI | 2000PSI |
